Getting started with IFC to VR
Step-by-step guide to viewing IFC files in VR using Meta Quest and Sentio VR
Introduction
SENTIO VR enables seamless viewing and interaction with IFC files in Virtual Reality using the Meta Quest headset. This guide provides step-by-step instructions on how to upload your IFC files and explore them in VR.
Step 1: Upload IFC File to SENTIO VR
-
Log in to the SENTIO VR Web Portal
- Visit SENTIO VR and sign in with your credentials.
-
Access 3D Walkthroughs
- Navigate to the Go-To Projects section.
- Click on 3D Walkthroughs.
-
Create a New Walkthrough
- Click Create New Walkthrough.

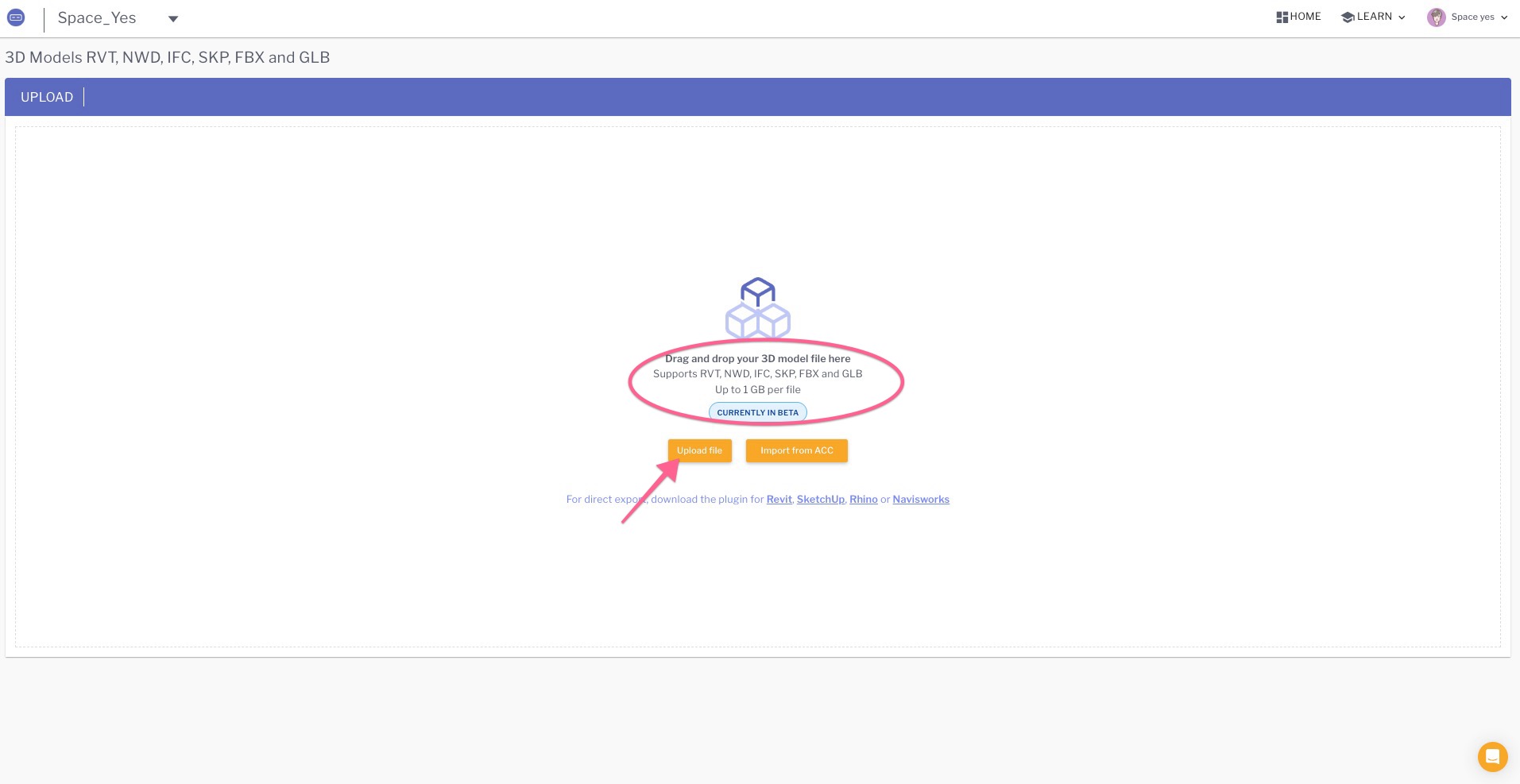

- Drag and drop your IFC file (Ensure it is less than 250MB).
-
Upload & Processing
- Click Next and wait for the upload to complete.
- You will receive an email notification once the upload is successful.
Step 2: Access the Model in MetaQuest
- Put on your MetaQuest headset.
- Enter the 6-digit code from your SENTIO VR account or use the individual file code.
- Dollhouse Mode
- The model will initially load in Dollhouse Mode, where you can:
- Rotate and scale the model.
- View the model in AR Mode.
- The model will initially load in Dollhouse Mode, where you can:
Step 3: Navigating the IFC Model in VR
-
Open the VR Menu
- Press the left controller button (three horizontal lines) to access the VR menu.
-
Step Inside the Model
- Use the trigger on the right controller to point at a location and teleport inside.
-
Switch to 1-to-1 Scale Mode
- Once inside the model, you can:
- Teleport, fly, or walk inside the space.
- Adjust your eye height for a realistic view.
- Rotate the model for better navigation.
- Once inside the model, you can:
Step 4: Advanced Design Review Tools
- Access the VR Menu using the left controller.
- Use the following tools for enhanced design review:
- Measurement Tool – Check precise dimensions.
- Annotations – Add comments and notes in VR.
- Screenshots – Capture and save key perspectives.
- Sun & Shadow Settings – Adjust lighting for real-world simulation.
Step 5: Conduct Collaborative Design Reviews
- Open the VR Menu and click on the Meetings icon.
- Create a Meeting and copy the Meeting Code or 4-digit PIN.
- Invite Participants
- Share the code with stakeholders using a PC viewer or another Meta Quest headset.
- Real-Time Collaboration
- Conduct live design reviews and discussions with multiple users in VR.
Conclusion
By following these steps, you can seamlessly review and collaborate on IFC models in Meta Quest using SENTIO VR. This workflow enhances design visualization, iteration, and team collaboration in an immersive VR setting.
